Smiths Detection - IONSCAN 600
Portable explosives and narcotics trace detector

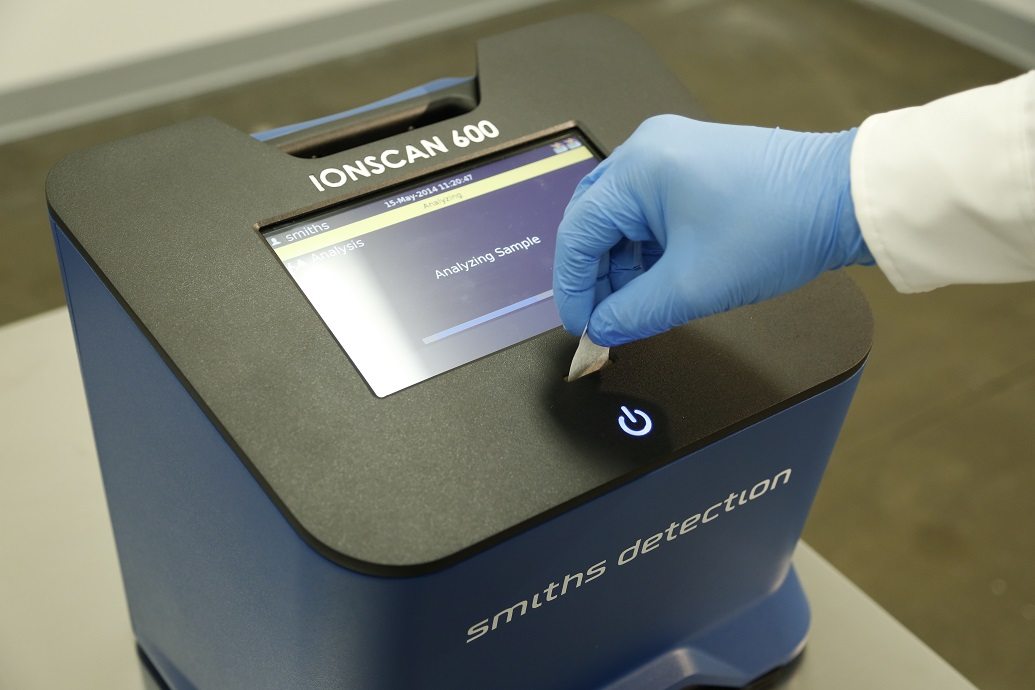

IONSCAN 600 is a highly sensitive, non-radioactive, lightweight, portable desktop system that detects and identifies trace amounts of explosives and narcotics.
Overview
The IONSCAN 600 is a highly sensitive trace detector, in a lightweight, portable desktop configuration. It can be used to accurately detect and identify a wide range of military, commercial and homemade explosives threats and common illegal/controlled narcotics, including the highly potent synthetic fentanyl opioids that are rapidly spreading across the world.

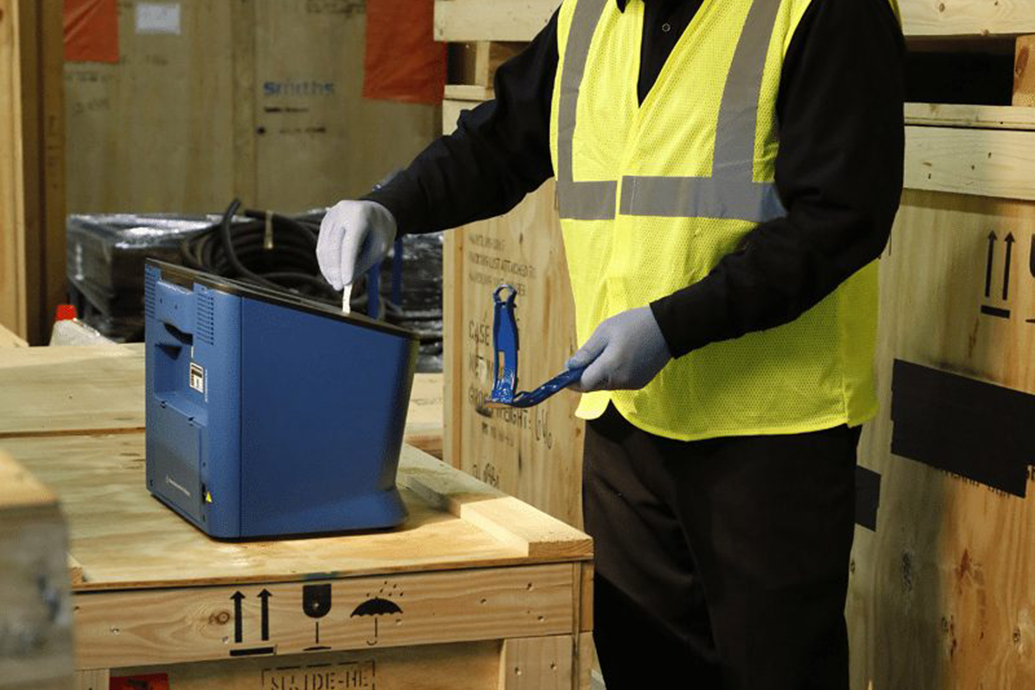

The compact, lightweight IONSCAN 600 is easily portable; it includes hot-swappable batteries for full operation even when mains power is not available. The unit can be relocated while fully operational (without any downtime) enabling it to be used in a much broader range of screening environments.
It features a proprietary non-radioactive ion mobility spectrometry (IMS) source, which means licensing from national nuclear regulatory agencies is not required. This allows the detector to be used without time-consuming radiation testing and administration, and enables easy licence-free transport from location to location.

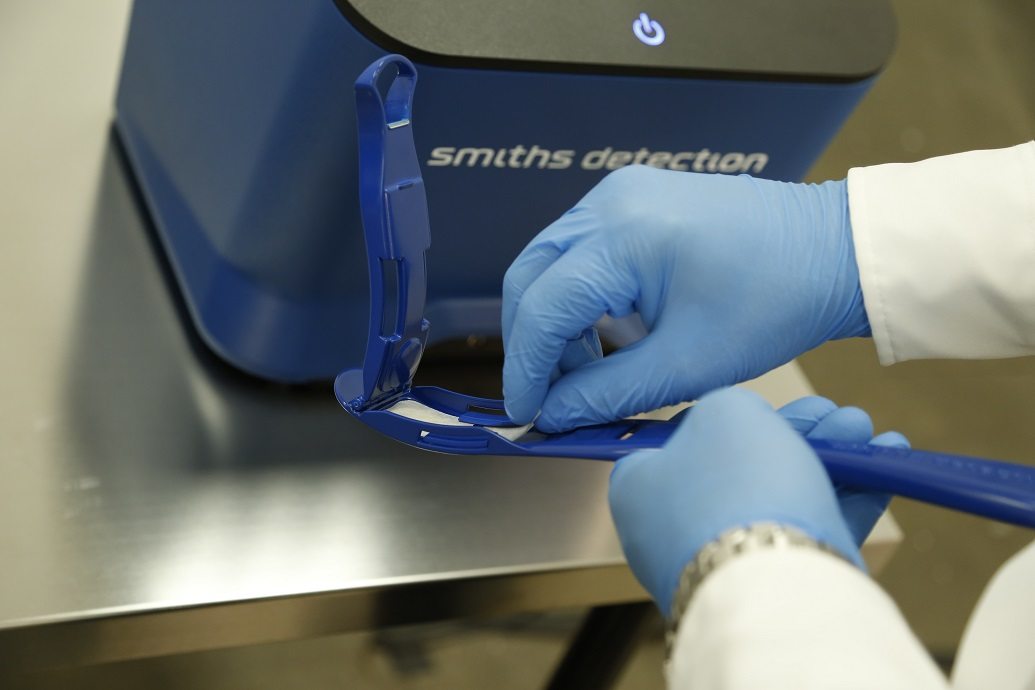

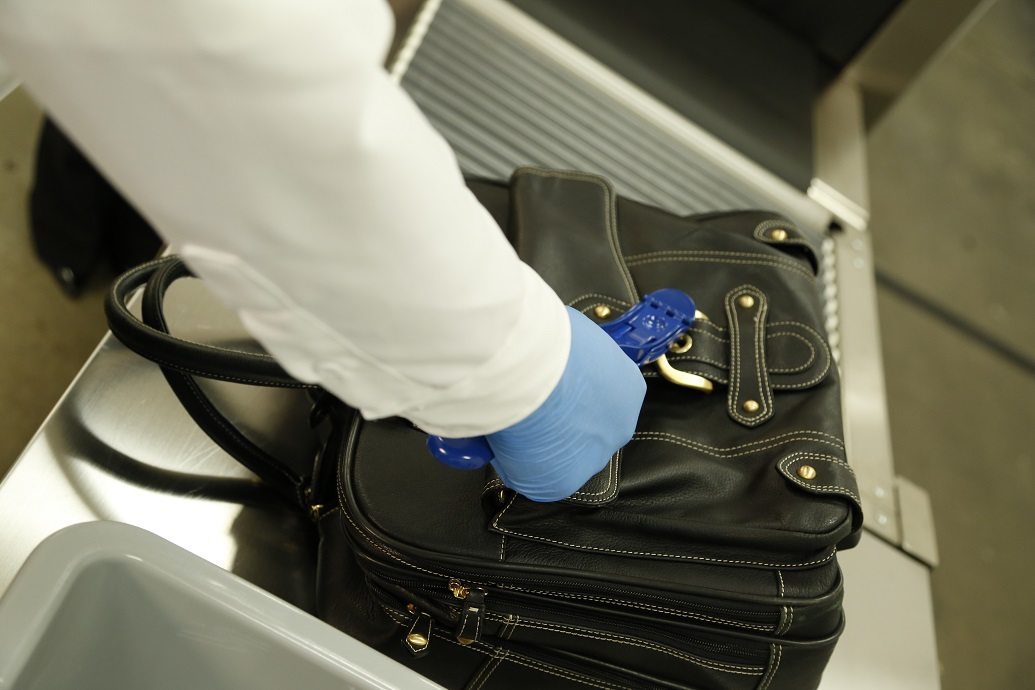

The IONSCAN 600 is unique in working with cost-effective, single-use swabs suitable for both manual and wand sampling. Designed for efficient trace-particle pick-up, these proprietary swabs reduce contamination risk and offer the most hygienic method for sampling a person’s hands.
Featured Highlights
- Detection and identification in less than 8 seconds
- Simultaneously detects and identifies explosives and narcotics
- Non-radioactive IMS source
- Small, lightweight and portable
- Optional integrated printer
- Single use, disposable sampling swabs
- Approved/certified by ECAC and CAAC
Product Downloads
IONSCAN 600| Technology |
Ion Mobility Spectrometry (IMS) with non-radioactive ionisation |
|---|---|
| Sampling |
Trace particle sampling using cost effective, single-use swabs with either manual or wand collection |
| Explosives detection |
Military, commercial and home-made explosives including EGDN, HMTD, HMX, NG, PETN, RDX, TATP, Tetryl, TNT and others |
| Narcotics detection |
Amphetamine, cocaine, heroin, ketamine, MDMA, methamphetamine, buprenorphine, THC, fentanyl, carfentanyl, W-18, Spice/K2, and others |
| Consumables |
Cost-effective single use swab and verification pen |
| Analysis time |
8-12 seconds or less |
| Warm-up time |
Less than 10 minutes |
| Connectivity |
Ethernet; 4x USB 2.0 |
| Battery |
Integrated Lithium-ion for 1-hour full operation; hot swap batteries allow extended operation time. |
| Printer |
Integrated thermal printer (option at time of order only) or external USB printer |
| Data display |
22.9cm (9") high resolution, anti-reflective, colour touch-screen |
| Weight |
Non-printer version: 10.8kg (23.8lbs) Integrated printer version: 11.5kg (25.4lbs) |
| Dimensions (L x H x D) |
Non-printer version: 37.2 x 30 x 32.7cm (14.6" x 11.8" x 12.9") Integrated printer version: 37.2 x 39.3 x 37.5cm (14.6 x 15.4 x 14.8in) |
| Operating temperature |
-10 to +50°C (14 to 122°F) |
| Operating altitude |
3,048m (10,000ft) |
| Operating humidity |
0 to 95% non-condensing |
