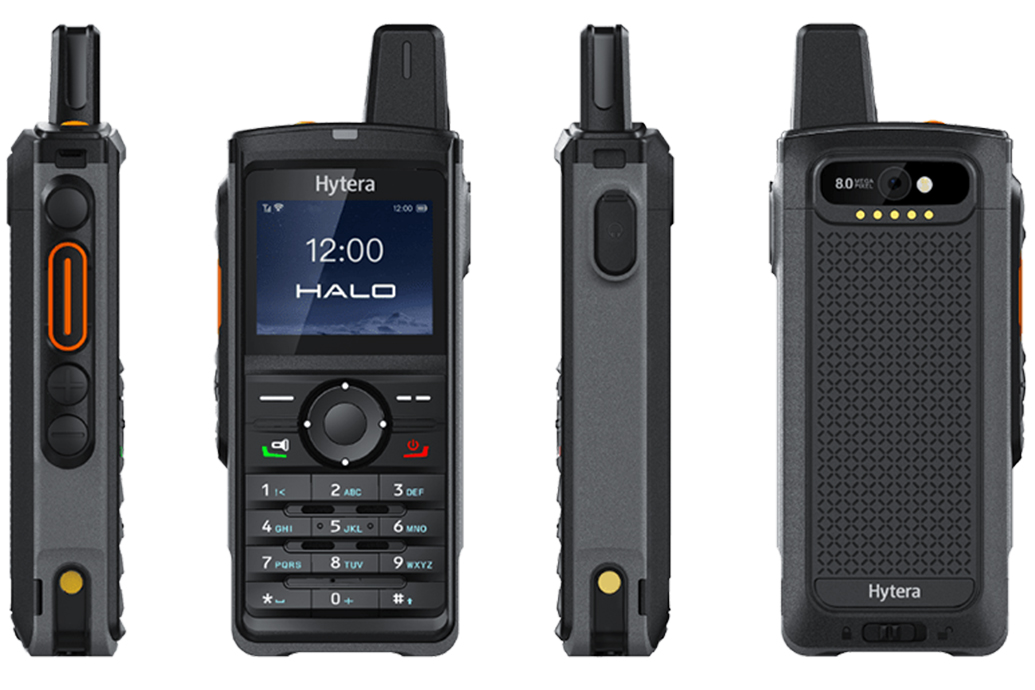

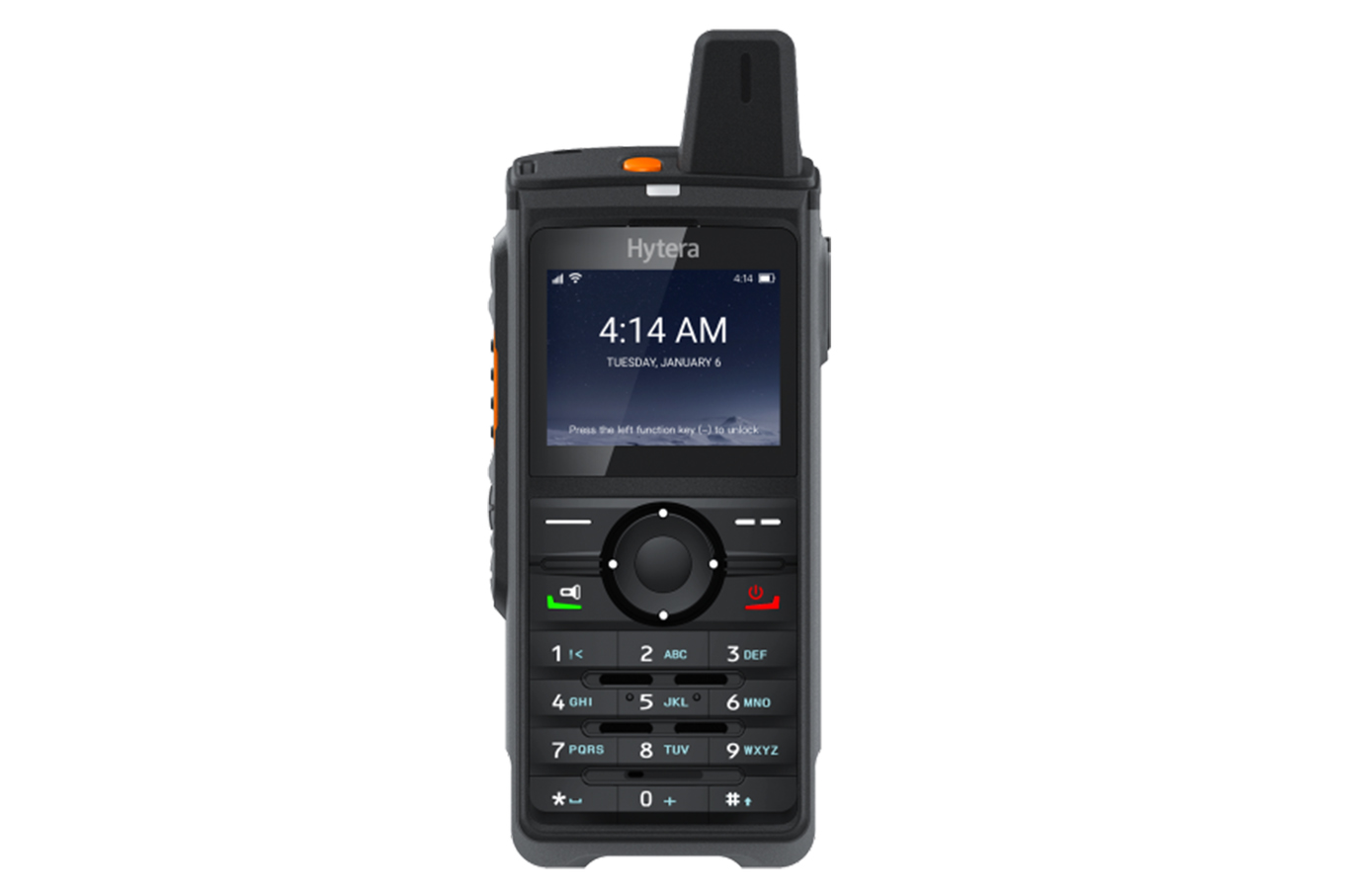

Hytera - PNC380 PoC Radio
Combines instant communication and multimedia applications into one single device.
Hytera PNC380 POC Radio combines instant communication and multimedia applications into one single device.
Over the 2G, 3G, 4G, and Wi-Fi networks, the device delivers rich multimedia data services, including 4G video transmission, location sharing, and instant messaging.
STAY CONNECTED, STAY INFORMED
Leveraging the broad coverage of 2G, 3G, 4G, and Wi-Fi networks of various carriers, the PNC380 delivers seamless communications across your country. Talk to groups or individuals instantly at a push of the PTT button, or make a telephone call with the full keypad at your will.
4G LIVE VIDEO
Equipped with a 5 MP rear camera, the radio allows you to feed the on-site videos to the dispatcher or supervisor in real time over 4G network, improving situational awareness and facilitating decision-making.
POSITIONING
The PNC380 provides positioning services by using GPS, GLONASS, and BDS in combination, together with the assisted GPS technology.
IP67 AND MIL-STD-810G
Certified with IP67 rating, the radio is fully protected from dust and is water-proof up to 1 meter for 30 minutes. The radio also meets the MIL-STD-810G standard to withstand 1.5-meter drop.
4,000 MAH—LASTS ALL DAY LONG
The 4,000 mAh Li-ion battery offers over 24 hours of talk and standby time on a 5-5-90 duty cycle, and can be charged through the radio's Micro USB port.

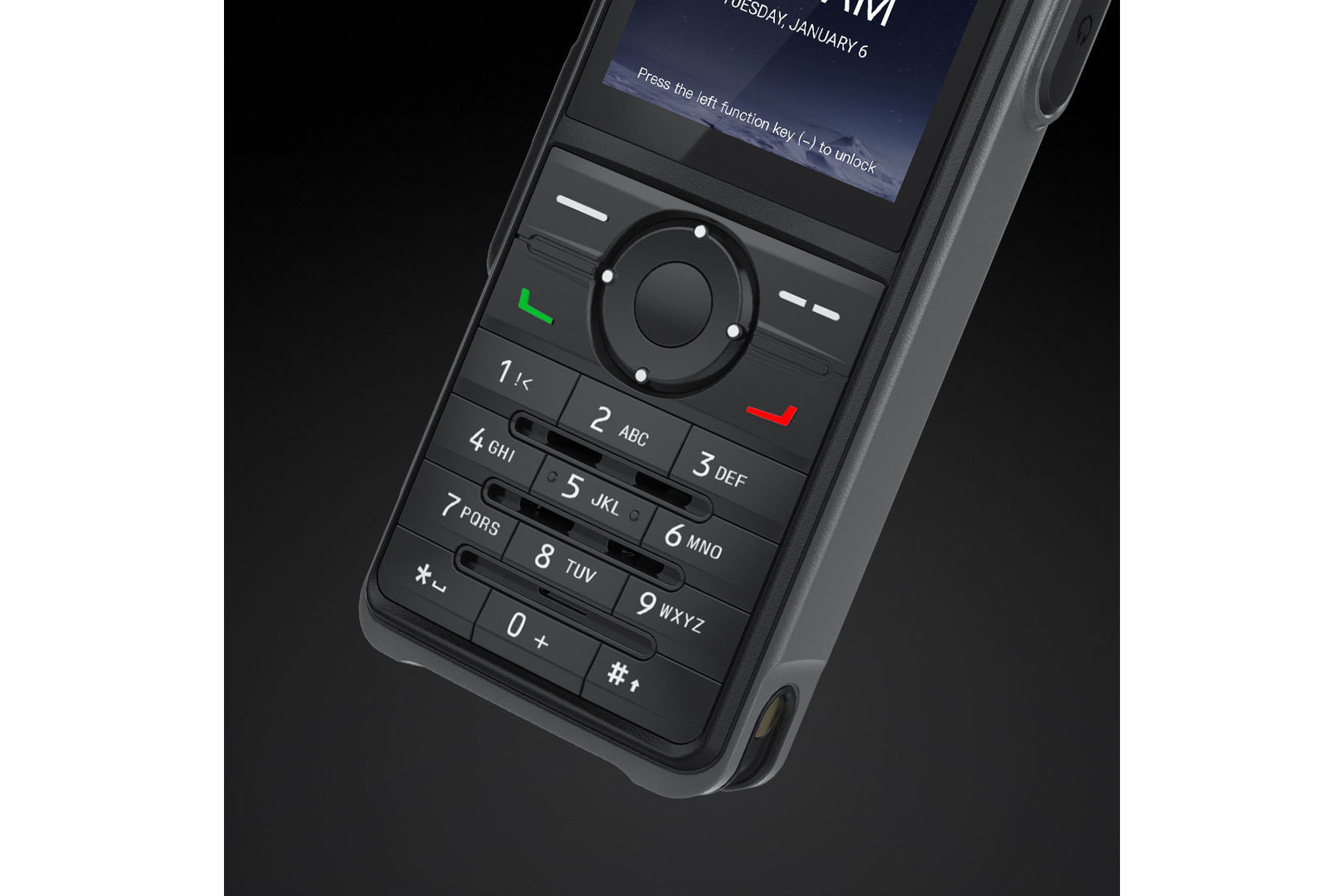

ENHANCED ERGONOMIC DESIGN
Compact and ergonomic design, paired with the deliberate side key layout, makes the one-hand operation easy and comfortable. The anti-slip textured case ensures firm grip even in moist conditions.
LOUD AND CLEAR AUDIO
Adopting the dual-mic noise reduction technology, the radio always picks up the right voice from noisy background. The advanced acoustics design substantially elevates sound loudness and sharpness.
DEDICATED EMERGENCY BUTTON
An orange emergency button on the top of the radio helps you send an emergency call to a dispatcher or supervisor in case of an emergency.
| Model Name |
PNC380 Basic / PNC380 Advanced |
|---|---|
| FDD-LTE |
B1/B3/B5/B7/B8/B18/B19/B20/B26/B27/B28 |
| TDD-LTE |
B38/B39/B40/B41 |
| TD-SCDMA |
B34/B39 |
| WCDMA |
B1/B3/B5/B8 |
| CDMA |
BC0 |
| GSM |
850/900/1800/1900 |
| Screen size |
2 inches |
| Screen resolution |
320 x 240 |
| Keypad |
Full keypad |
| Dimensions (H x W x D) |
145.1 mm x 60 mm x 26.1 mm |
| Weight |
208 g (with battery and antenna) |
| Ingress Protection |
IP67 |
| Drop resistance |
1.2 m |
| RAM |
512 MB / 1 GB |
| ROM |
4 GB / 8 GB |
| Extended memory |
Micro SD/TF card: Maximum 32 G |
| Battery |
4000 mAh, battery life ≥ 24 h (5-5-90 duty cycle), replaceable |
| Battery operating voltage |
3.85 V |
| Charging mode |
Micro USB 2.0 (5 V/1.4 A) / Micro USB 2.0 (5 V/2 A) |
