HI-SCAN 100100T
Single-view scanning for large objects

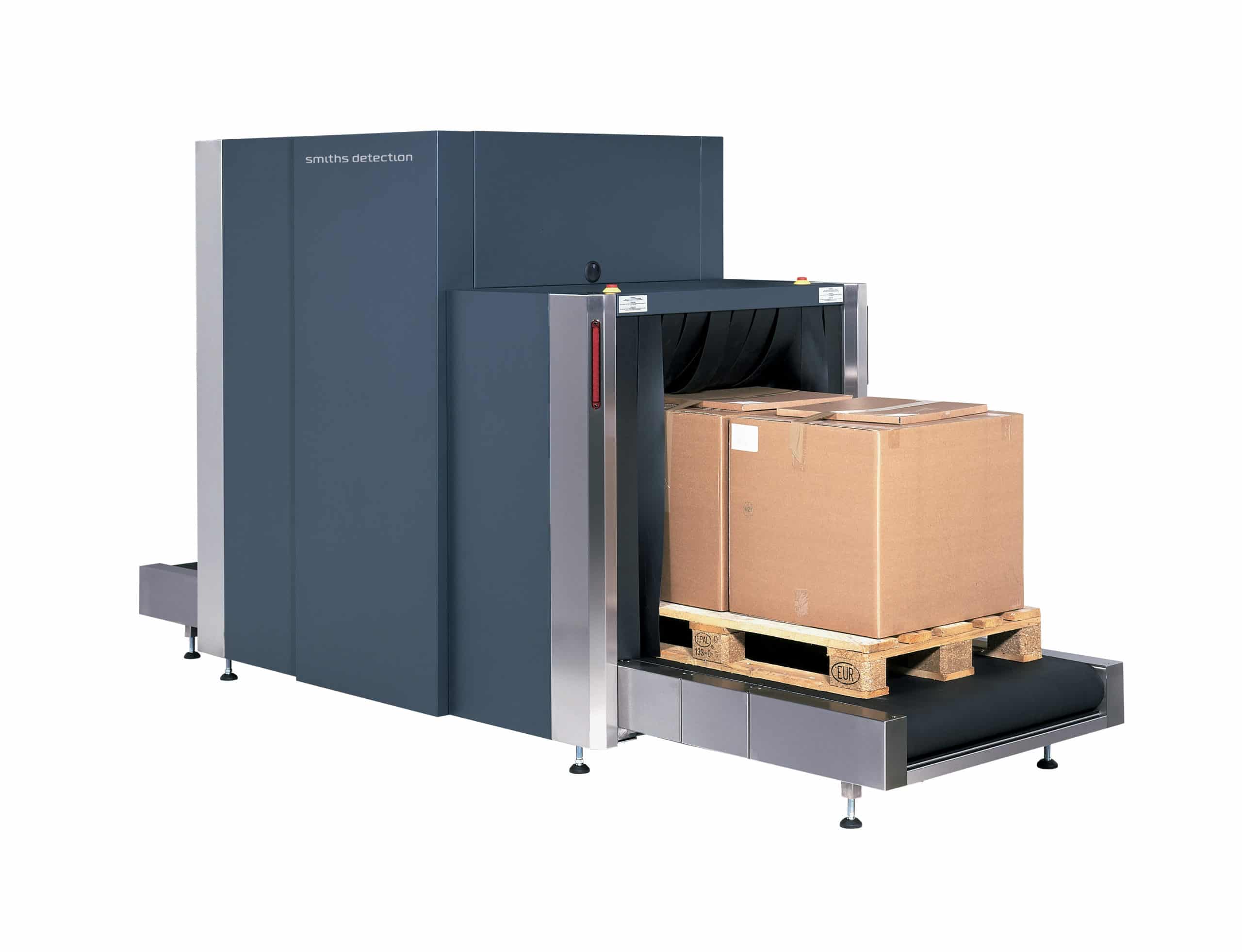

Ideal for inspecting over-sized baggage and freight, the HI-SCAN 100100T is a state-of-the-art X-ray inspection system for heavy objects up to a size of 100 x 100cm.
Overview
The HI-SCAN 100100T is a state-of-the art X-ray inspection system for scanning objects up to a size of 100 x 100cm.
Designed to meet the needs of airports, customs facilities, transportation operations, carriers and parcel services – in applications where high security and the screening of large objects are required.
The low installation height of the conveyor system facilitates the connection of supplementary feed and/or discharge conveyor systems for heavy freight.
Featured Highlights
- Ideal for inspecting over-sized baggage and freight
- Low conveyor belt allows for easy handling of heavy goods
- Outstanding image quality with HiTraX electronics
- Wire detectability AWG 38
- HI-MAT Plus technology provides better material distinction
- Tunnel size in optimal proportion to entire system
- Typical steel penetration 32mm
Product Downloads
HI-SCAN 100100T Datasheet| Max. object size : |
1000 (W) x 1000 (H) [mm] 39.4 (W) x 39.4 (H) [in] |
|---|---|
| Dimensions |
3578 (L) x 1234 (W) x 1900 (H) [mm] 141.0 (L) x 48.6 (W) x 74.8 (H) [in] |
| Weight |
approx. 930kg approx. 2,050lbs |
