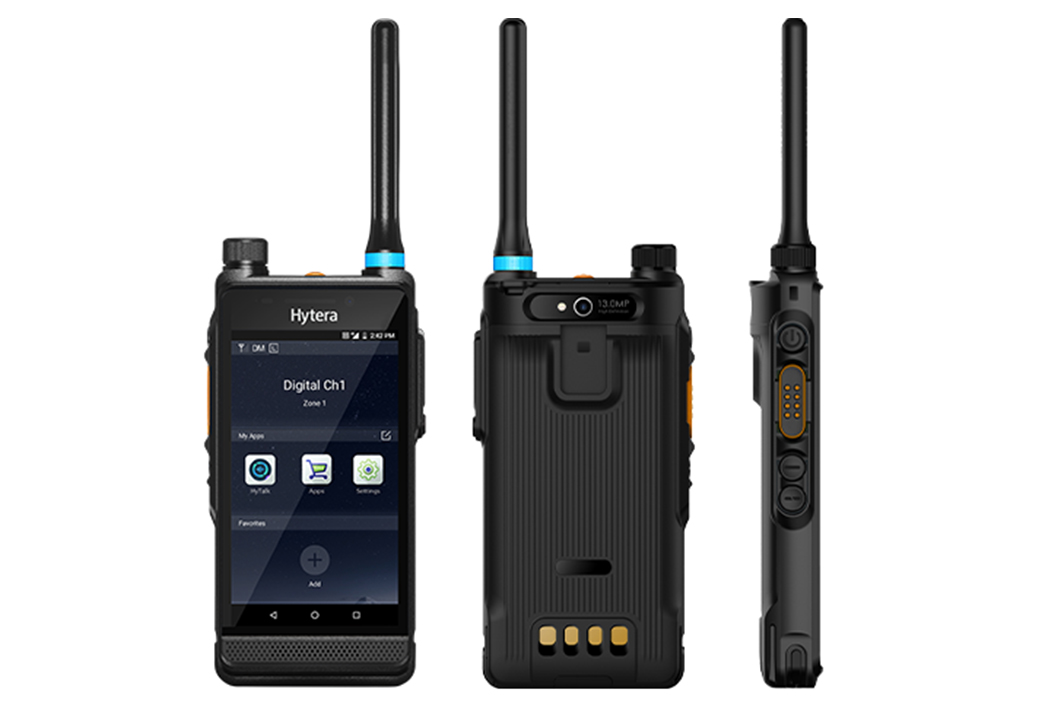

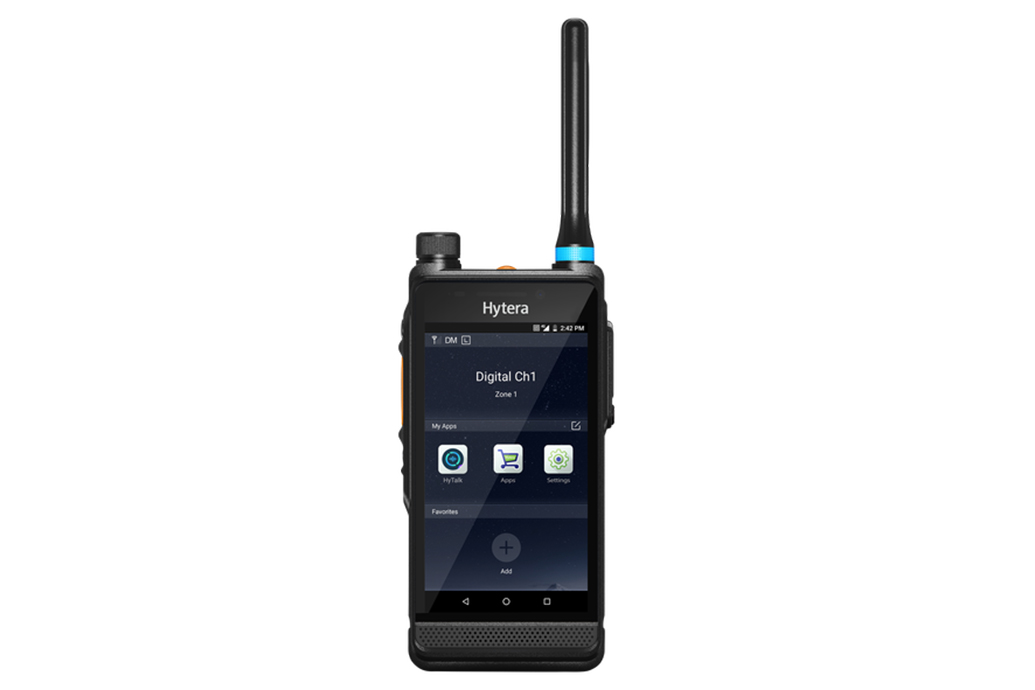

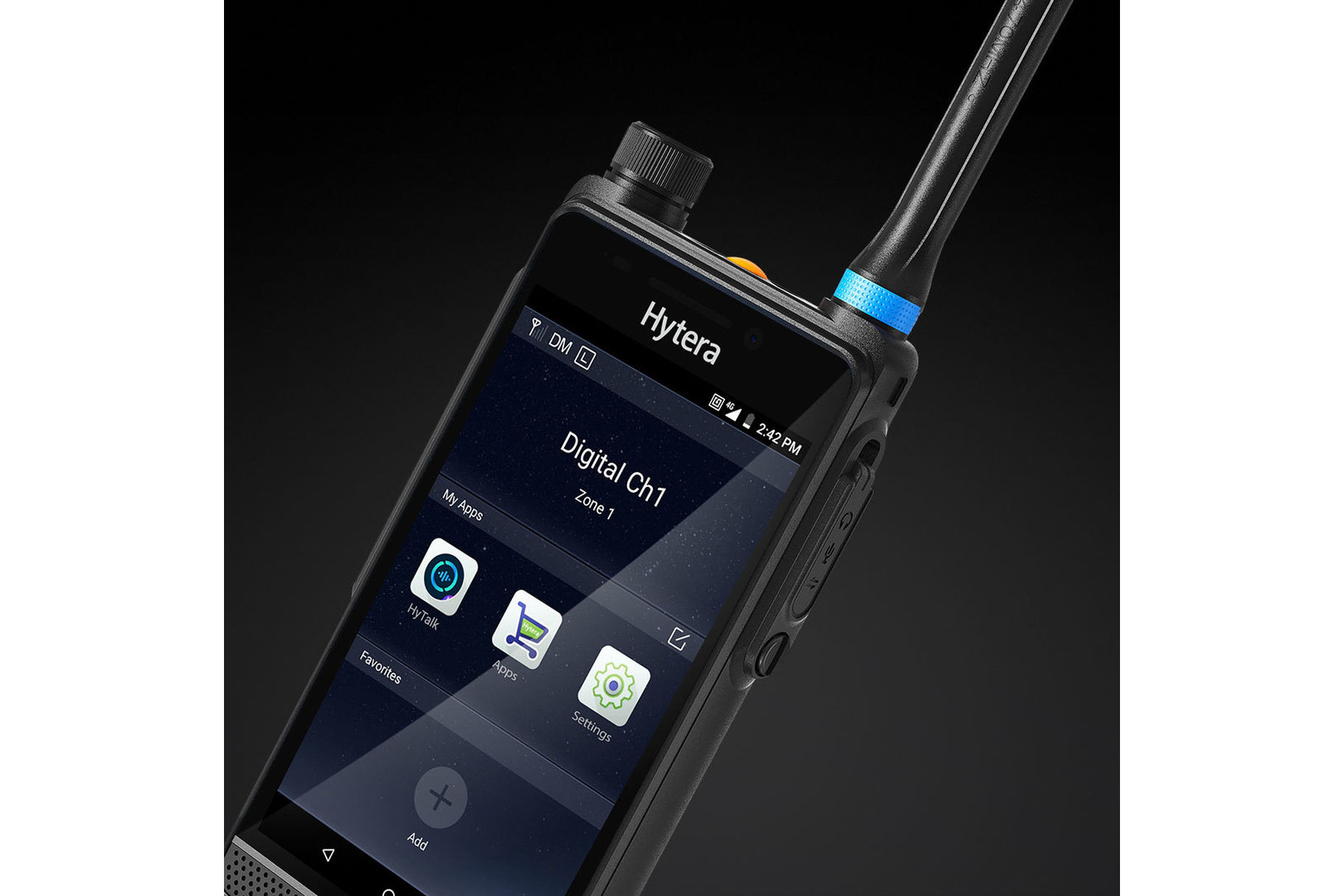

Hytera - PDC550 Hybrid PoC Smartphone
PDC550 is a smart PoC radio which enables the collaboration of multiple communication modes
PDC550 is a smart PoC radio which enables the collaboration of multiple communication modes including broadband and narrowband networks as well as public and private networks in various scenarios
| DMR Network |
UHF:400-470Mhz; VHF:136-174Mhz |
|---|---|
| Public Network |
Europe &Asia-Pacific&Africa &South Korea GSM: 850/900/1800/1900MHz TD-SCDMA: B34/B39 CDMA: BC0 WCDMA: B1/B3/B5/B8 TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B27/B28 |
| Memory |
3GB RAM + 32GB ROM, expandable memory (maximum 128GB) |
| Dimensions |
155mm x 75mm x 21.5mm |
| Weight |
375 g (including battery, antenna, and back clip) |
| Screen |
5.0-inch HD touch screen, 1280x720 resolution |
| Cameras |
Rear 13 mega-pixel camera+ front 5 mega-pixel camera |
| Card Slots |
3, 2*Nano SIM card slot, l*Micro SD card slot |
| WLAN |
2.4 GHz, 802.11 b/g/n |
| Sensors |
Gravity sensor, compass, distance sensor, optical sensor |
| locating |
GPS/AGPS/GLONASS/Galileo/BeiDou (shared for broadband and narrowband networks) |
| Bluetooth |
BT 4.1 (shared for broadband and narrowband networks) |
| NFC |
Available(Payment is not supported) |
| External Interfaces |
Hytera dedicated 13-pin interface, Charging interface for charger, Antenna interface (SMA interface, shared with Td5) |
| Key |
5: 1*PTT, 2*programmable key, 1*alarm key, 1*power key |
| Battery |
Standard 2400 mAh/optional 3500 mAh, 7.4 V |
| Charging Mode |
Charging with charger, 2 A charging |
| Flashlight |
Available |
| Volume Knob |
Available (shared with the channel knob) |
| TX Power |
UHF: High power 4W/Low power 1W |
